Long-Range Connectivity up to 6 Miles
Designed for P2P and P2MP Networking
IP65 Waterproof & 6000V Lightening Protection
Improved Performance with TD-MAX Technology
16dBi Dual-Polarized Directional Antenna
PRODUCT INFORMATION
Model | O6V2.0
Dimension | 270 x 94.86 x 67.5 mm
Deployment | Pole Mount
Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
HARDWARE
Frequency Range | 5GHz
Compliant Standards | IEEE 802.11a/n/ac
Maximum Wireless Rate | 867 Mbps

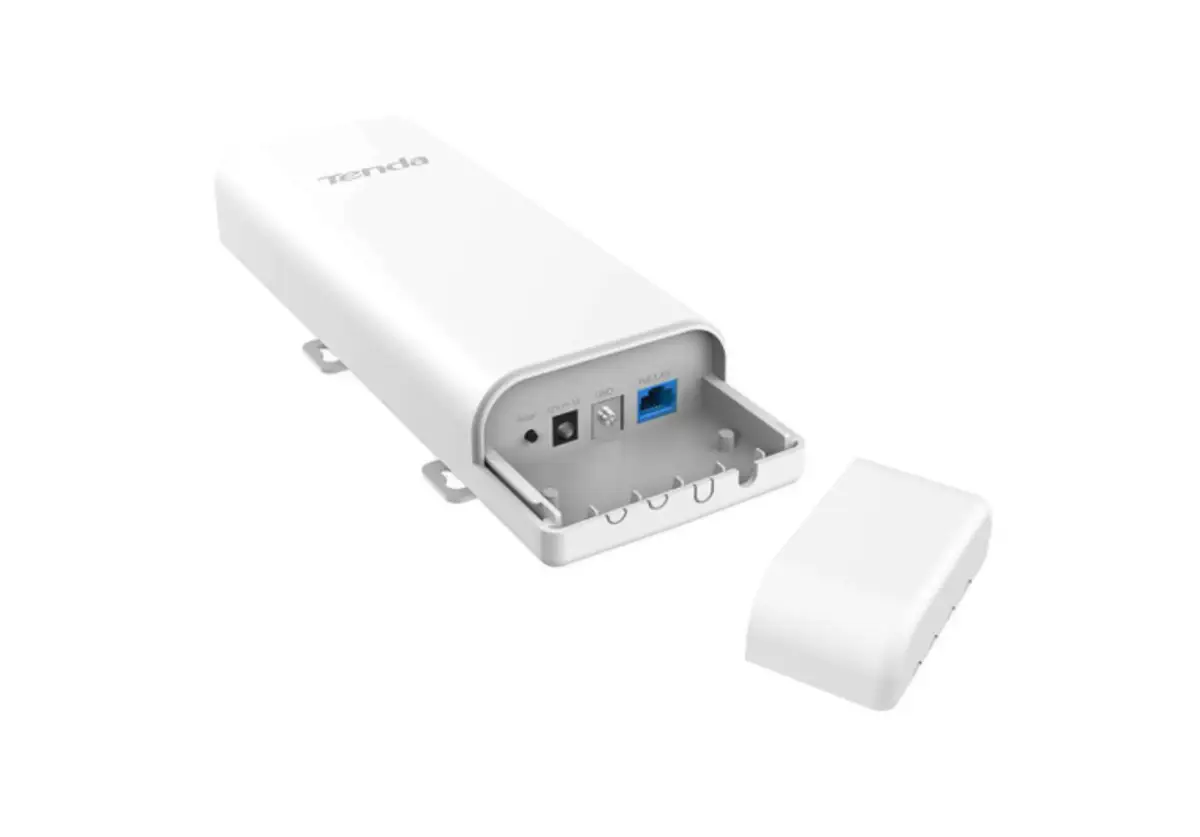

Interfaces | 1*10/100Mbps Ethernet Port
Antenna Polarization | Dual Polarization Directional Antenna
Antennas Gain | 16dBi
Antenna Beamwidth | Horizontal: 30° Vertical: 30°
GND | 1
Reset Button | 1
Power Consumption | 6.5W
Waterproof Level | IP65

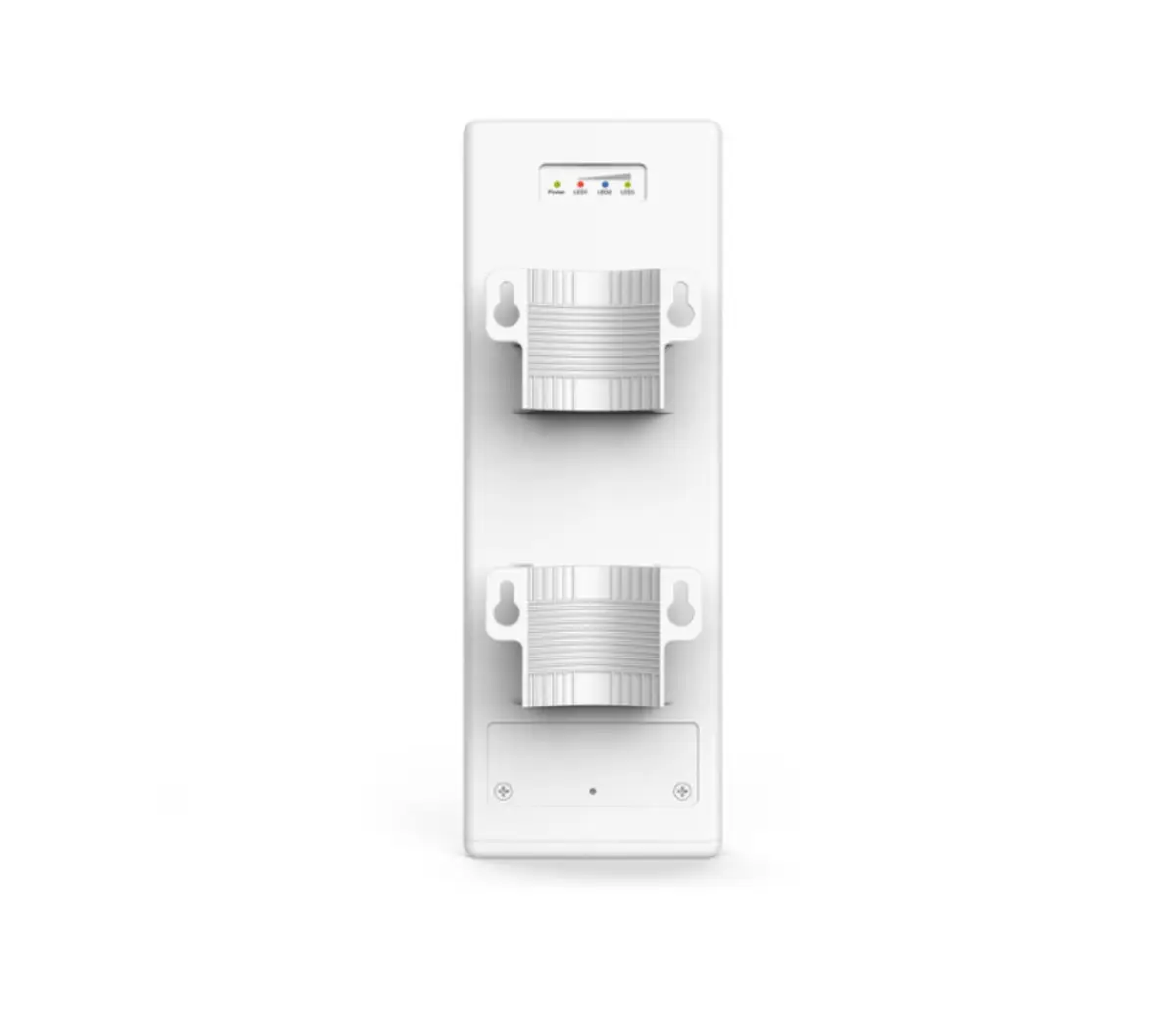

LED Indicator | PoE/LAN,LED1,LED2,LED3
Power Method | PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC
Lightning Protection | 6000V
Passive PoE | Passive power over ethernet via PoE/LAN (4, 5 pins, -7, 8 pins) up to 60 meters
Voltage range: 21-25V DC
Reception Sensitivity | 11a 6Mbps -95dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm
SOFTWARE
TDMA | Support
Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio | Support
SSID Hidden | Support
Wireless Client Isolation | Support
SSID Isolation | Support
Channel Bandwidth | 20/40/80MHz
Channel Shift | Support
Wireless Access Control | Support
Weak Signal Client Limitation | Support
Transmission Power | Adjustable power by 1dBm
