- Line interactive design
- Fully digitized microprocessor controlled
- SMD technology
- Boost & buck AVR Function
- Wide Input Voltage & Frequency Range (165V - 280V; 45 -65Hz)
- Cold start function
- Intelligent CPU control
- Protection for short circuit & overload
- Both audible and indication lamp alarm functions
- Three (3) LED indication for easy understanding
- Lightning 7 surge protection
- Short circuit & overload protection
- Protection for overcharge, deep discharge
- Compatible with small generators
- Automatically charging in UPS off mode
- Automatic self-detection when start-up
- Auto restart while AC recovery
- Intelligent battery management

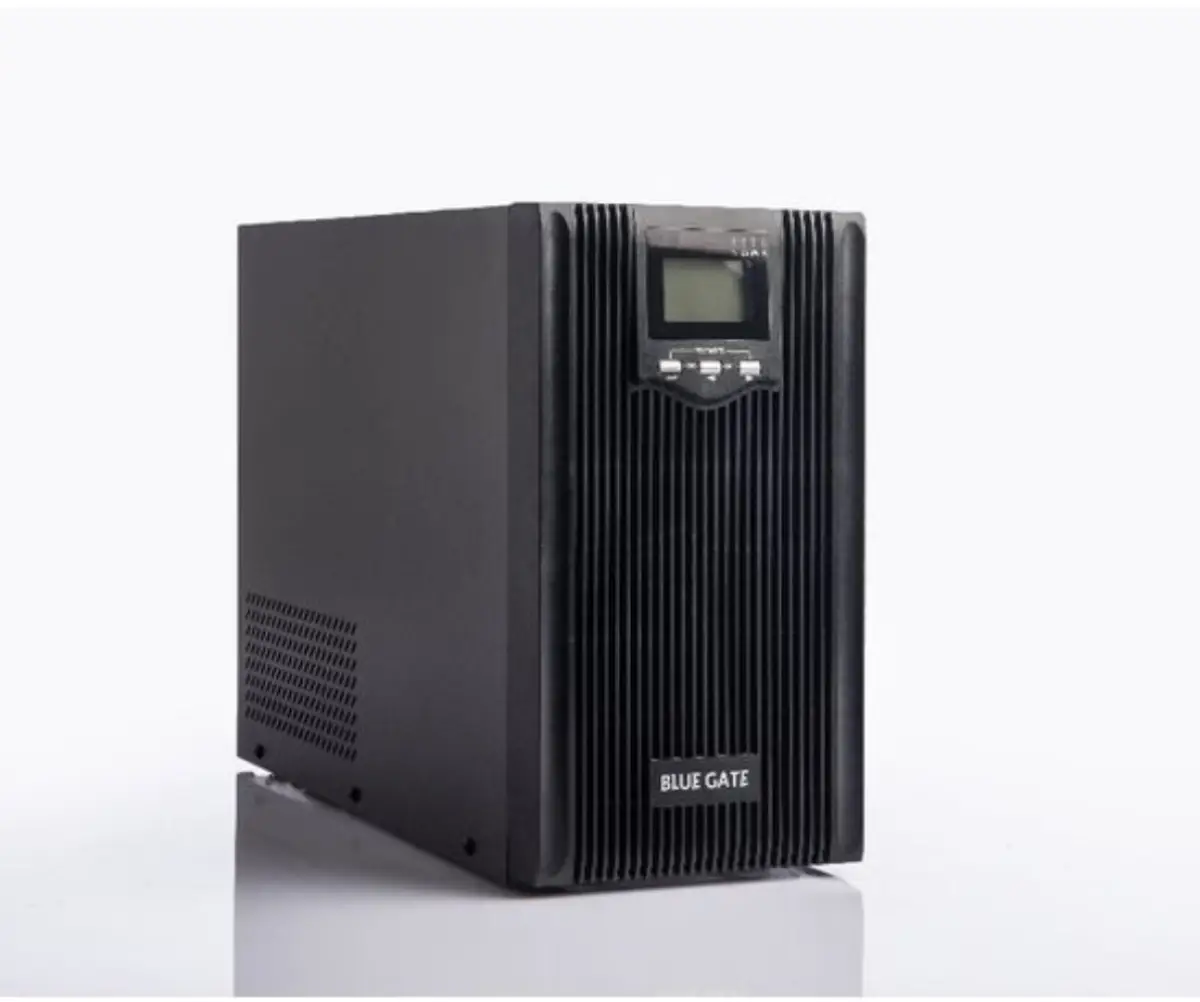

Specifications of Blue Gate 4000VA Line Interactive UPS
INPUT
Voltage | 150V -270V
frequency | 48Hz – 60Hz
OUTPUT
Output Voltage | 220V ± 10%
Waveform | PWM Simulated sine wave
Low Battery Automatic cutoff & Automatic restart | Yes
BATTERY
Type | Sealed VRLA maintenance free
Back-up Time-fully charged | Full load (min) | 20
Half load (min) | 45
Configuration | 2*12V/9AH
Recharge Time | 90% capacity after 8hours
SYSTEM
Transfer time | ≤10ms
Audible Alarm | Battery Discharge | Sounding 4sec after mains failure
Battery protection | Continuously
Surge and Noise protection | Yes
Temperature | 0⁰C —40⁰C
Relative Humidity | 0 – 90% (Non-condensing)
Acoustic Noise | Less than 50dB at 1m
PHYSICAL
Dimension (L*W*H) | 37*14*23cm | 44.5*19.5*30cm
Shipping weight | 12.5kg
Casing | Metal
